5 AXIS CNC GRINDING MACHINE PRECISION LINEAR SLIDE CNC CONTROL SYSTEM PCD GRINDING MACHINE FOR TOTARY HOLDER

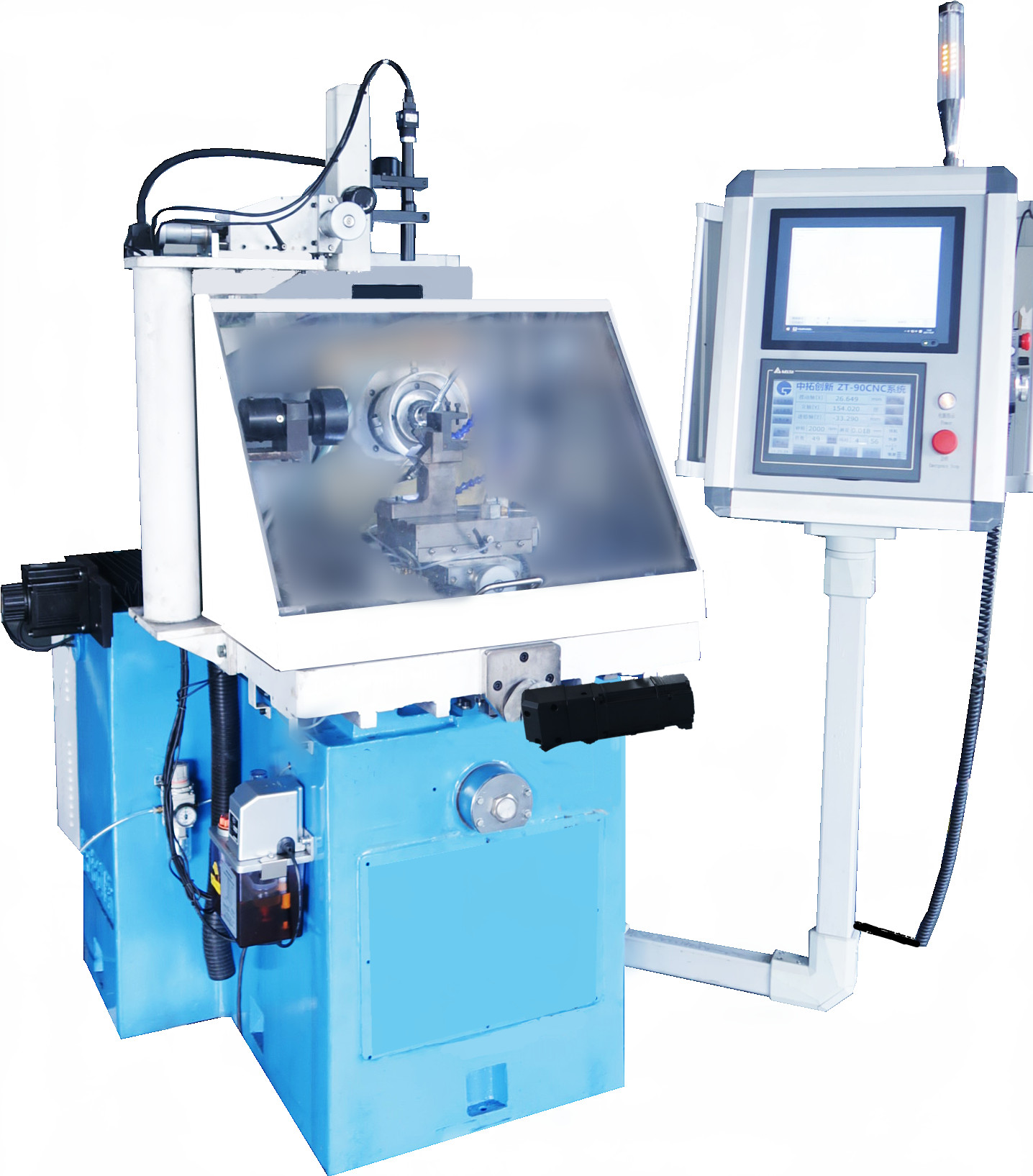

ZT-90CNC Grinding machine is a 5 axis CNC machine which is very economic model
1. Self R&D software to make sure the flexbility of the grinding process
2. It have the software storage programm
3. The rotary holder can opitional
4. JAPAN YASKAWA reducer
5. Easy operation
Design Features
- Extremely rigid construction with heavy duty cast iron body, more than 18 months natural ageing, stable and durable.
- The spindle can realizes lifting and angle adjustment, which embodies the perfect combination of precision, rigidity and dexterity.
- 5 axis CNC, 2 axis linkage, the whole grinding process is fully automatic.
- Using the latest vision technology, realizes on-line detection, automatic grinding, parameter memory, machining error alarm, etc., comprehensively improve the machining efficiency, accuracy, automation, stability.
- Spindle motor adopts brushless motor, stable and reliable.
- The whole pneumatic system use JAPAN SMC brand, to get a rapid feed and infeed and flexibility grinding.
- Equipped with electronic handwheel, can easily adjust the position of each machining axis and achieve manual grinding.
- Equipped with grinding wheel dresser.
TECHNICAL PARAMETERS
1.Spindle and Grinding Wheel
| Diameter of Grinding wheel | 6A2 150*40*40 |
| Spindle Power | 2.2KW |
| Spindle Speed | 0-4200RPM adjustable |
| Grinding wheel Inclination | -13°-+24° |
| Grinding Pressure | 0-450N adjustable |
2.Grind Wheel Oscillation( X axis)
| Grinding wheel Height Adjustment | 140mm |
| Grinding wheel Oscillation Frequency | 0-45/min adjustable |
| Grinding wheel Oscillation Distance | 0-70mm adjustable |
| Grinding wheel Oscillation Travel Range | 400mm
|
3.CCD Monitor System
| Max manification times | 70 times |
| CCD measuring system | Online system |
| Monitor | 17 inch monitor |
| Model | ZT-90CNC |
| Image system resolution | 1280dpi*960dpi |
| Pixel size | 3.75μm *3.75μm |
| Optical tube distance | 300mm |
| Image magnification | 45-250 times (Digital zoom) |
| Tip radius | 0-70mm |
| Grinding pressure | 0-450N adjustable |
| Spindle speed | 0-4200RPM adjustable |

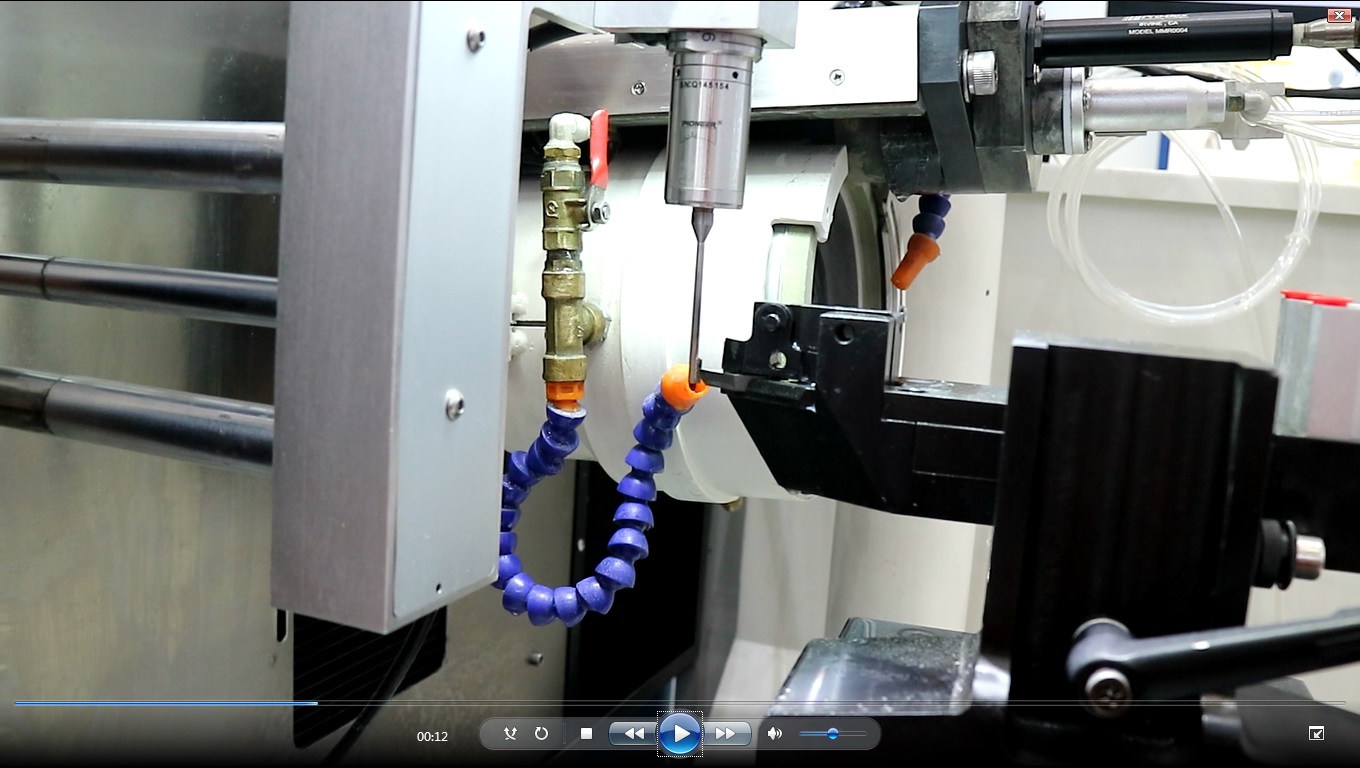

Grinding Samples

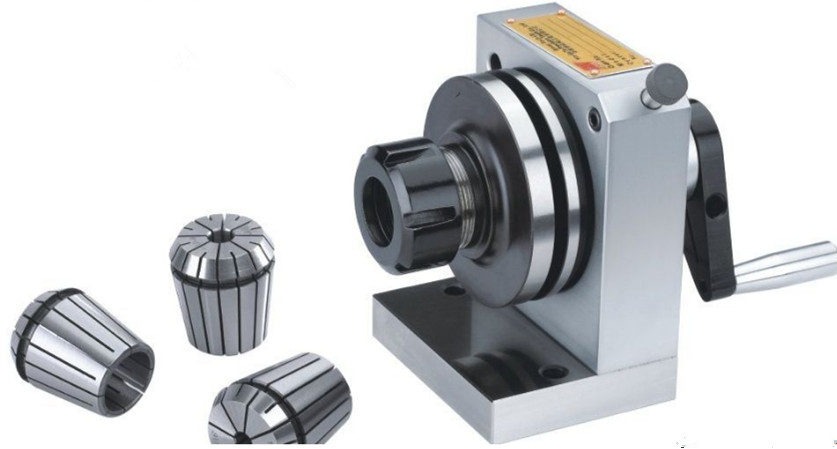

Optional Accessories

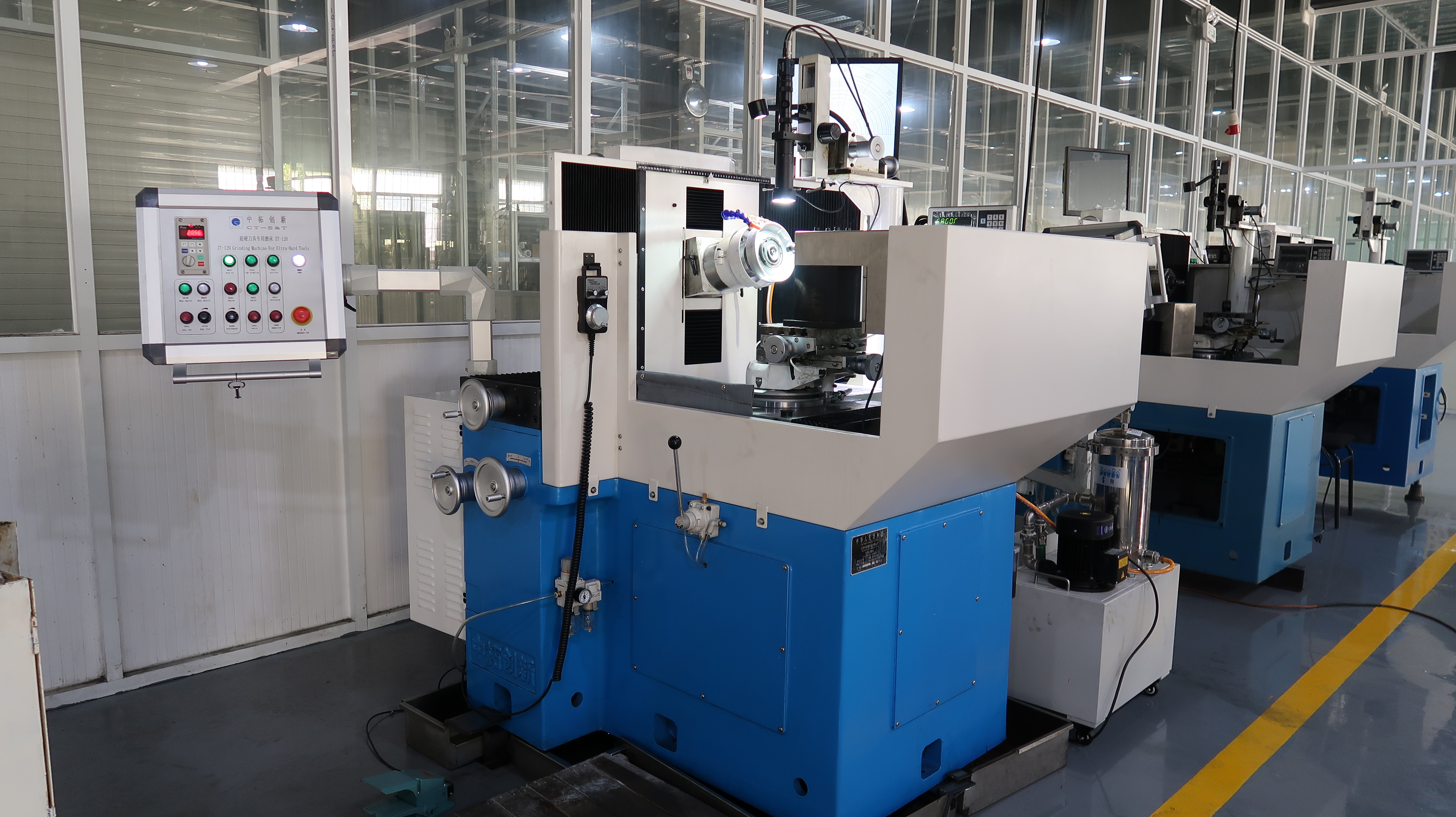

Factory View
CHN-TOP is the company offer comprehensive solutions for diamond tools making
Machines: PCD/PCBN diamond grinding machine, Vacuum brazing machine, laser cutting machine,
chip breaker machines, laser engraving machine and polishing machines
Material: World famous PCD/ PCBN blanks , such as ILJIN, Element six, Hypersion, Adico, CHN-TOP
CTSTC, SF with competive price
Machining service: Cutting for segements, brazing service for MD/PDC cutter, PCBN tools,
Notching service for tools, chip breaker machining service and grinding service
